Pressed Sections

Common profiles include angles, channels, Z-sections, C-sections, trays, channels with unequal legs and top-hat sections. Bespoke folded profiles can also be produced to meet specific manufacturing requirements. Available shapes will depend on the material, thickness, dimensions, bend radii and equipment capacity.

Hot rolled sections are produced in standard profiles and sizes at a steel mill. Pressed sections are formed from flat sheet or plate and can provide greater flexibility over dimensions, material thickness and profile shape. They are particularly useful when a standard hot rolled section does not suit the application.

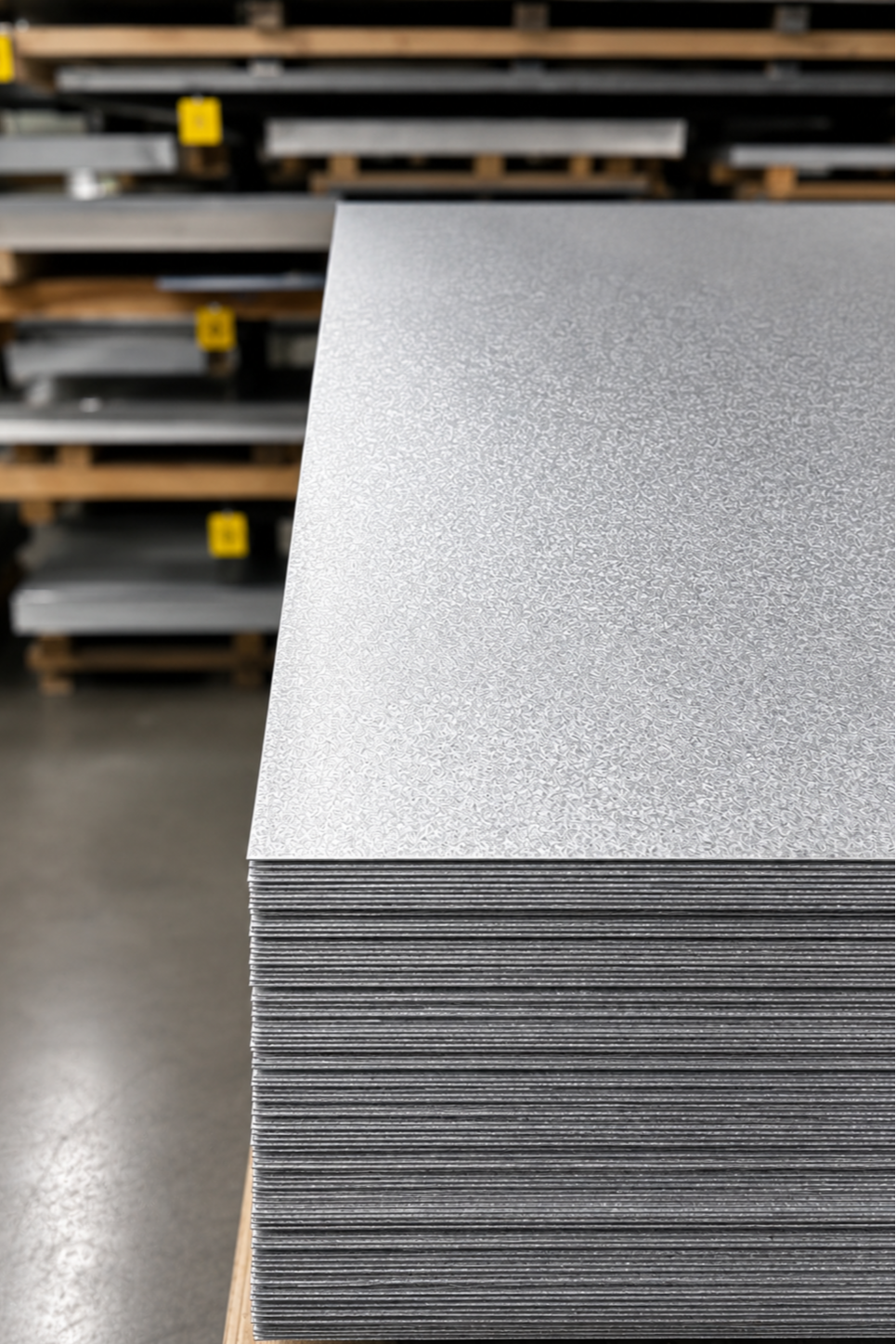

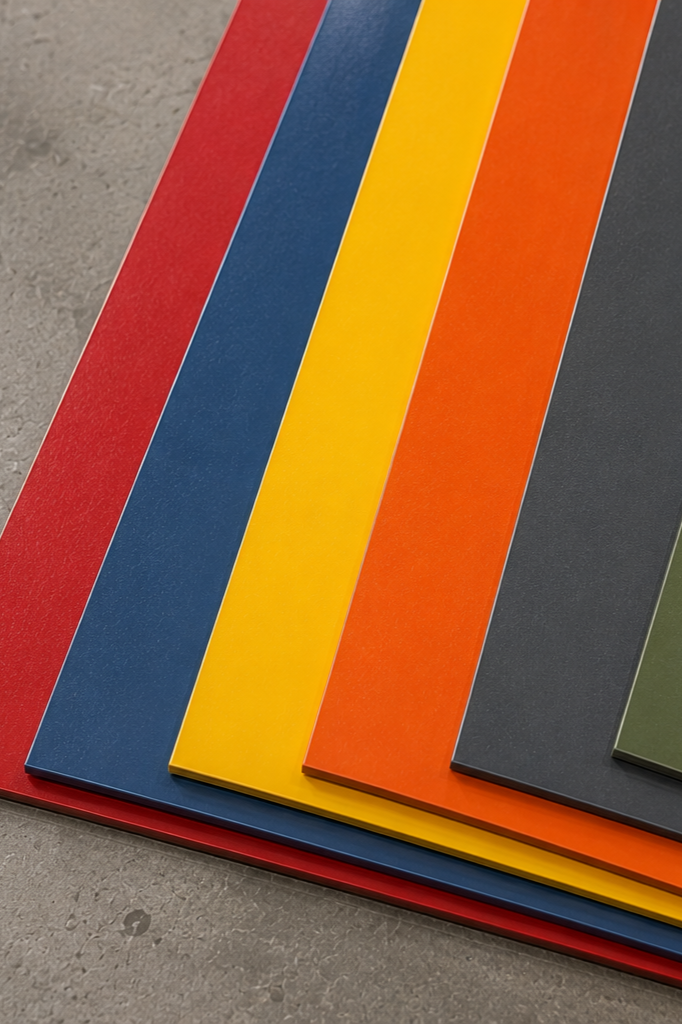

Pressed sections can be produced from materials including hot rolled, cold reduced, galvanised, Aluzinc, pre-painted steel and aluminium, subject to grade, thickness and forming requirements. The correct material should be selected according to the required strength, formability, appearance and corrosion resistance.

Pressed sections are used for frames, supports, brackets, lintels, channels, flashings, machinery, vehicle components, trailers, agricultural equipment, cladding systems and general fabrication. Bespoke profiles can reduce the need for welding or assembling multiple components, helping simplify production.

Yes. Matrix Steel can supply pressed sections made to customer dimensions and drawings. When requesting a quotation, provide the profile dimensions, material grade, thickness, internal bend radii, length, quantity and tolerances. A drawing or clearly dimensioned sketch will help ensure the required section is interpreted correctly.

Pressed and cold-formed sections can be used structurally when they have been properly designed for the intended loads, supports and working environment. Section shape, steel grade, thickness, bend radii and connection details all affect performance. Load-bearing profiles should be specified or approved by a suitably qualified structural engineer.
